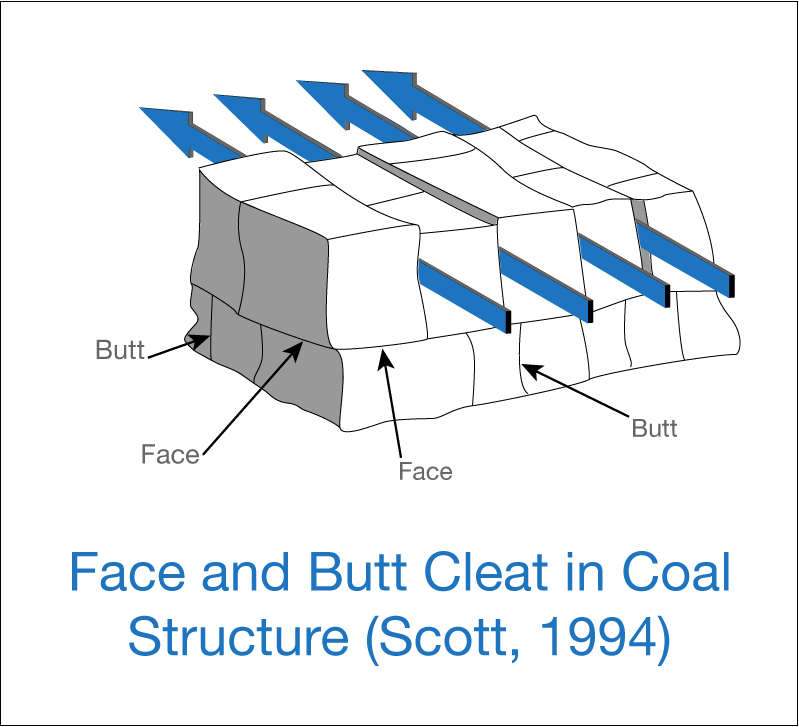

Endogenetic cleats are normal to the bedding plane of coal and generally occur in pairs. There are at least two sets of near perpendicular fractures that intersect the coal to form an interconnected network throughout a coal-bed. These two fracture systems are known as face and butt cleats. The shorter butt cleat normally terminates at a face cleat, which is the prominent type of cleat as can be seen in the adjoining figure .

The angle between the face and butt cleat is around 90 degrees.The spacing between cleats varies according to factors such as the coal maturity, the mineral matter and the carbon content, but normally is less than 25 mm but possibly more in dimension. The approximate width of the aperture and the length of the face and butt cleat spacing in some Australian coal samples are given in the table below.

Cleat

Spacing

Face cleat spacing

10 - 25mm

Butt cleat spacing

10 - 22mm

Aperture

0.1 - 2mm

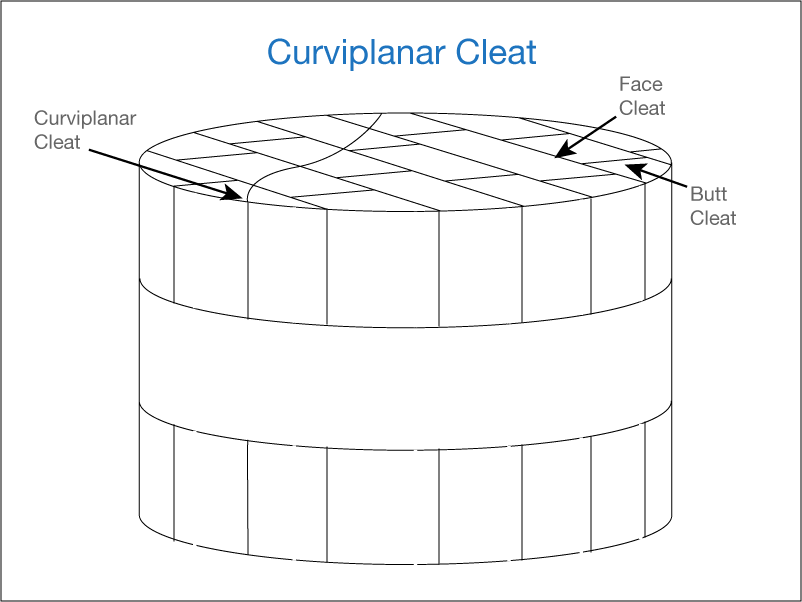

Coals with bright lithotype layers, with a high percentage of vitrinite macerals, have greater amount of cleats than dull coals. Common understanding is that cleats are formed due to the effects of the intrinsic tensile force, fluid pressure, and tectonic stress. The intrinsic tensile force arises from matrix shrinkage of coal, and the fluid pressure arises from hydrocarbons and other fluids within the coal. These two factors are considered to be the reasons for endogenetic cleat formation. On the other hand, the tectonic stress is regarded as extrinsic to cleat formation and is the major factor that controls the geometric pattern of cleats. Face cleats extend in the direction of maximum in situ stress, and butt cleats extend in the direction of minimum in situ stress which existed at the time of their formation. This is why regular cleats are formed in face and butt pairs. In general three sets of cleats are present in coal: face, butt and sometimes curviplanar cleat direction, which intersect both face and butt cleat as shown in the figure.
